M-shaping

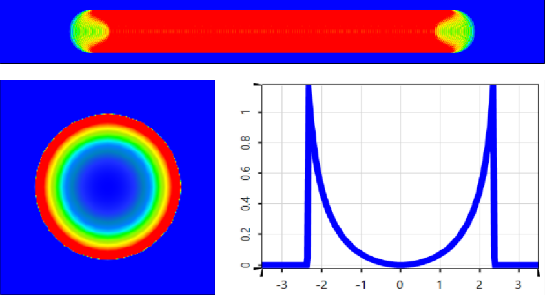

Function:The function of M-type diffraction optical element is to shape the incident laser into M-Shape, and M-shape refers to the uniform sliding laser spot along a certain direction, the integrated energy distribution is uniform, that is, to form a narrow straight line with uniform energy distribution.

Application:This property of M-Shape laser spot makes it particularly suitable for straight line processing of laser materials, such as laser welding, laser cutting, laser slicing, laser ablation, laser melting and strong laser welding applications.

lProduct parameter range:

Material	Polymer glass, plastic, fused silica, zinc selenide, sapphire, silicon	DOE integrated size	≤150mm
Wavelength range	193nm ~10.6μm	Coating	Anti-reflective film (optional)
Design	DOE/MLA	Customized design	Arbitrary size
Diffraction efficiency	86% - 96%	Exit angle	≤80°

Classic model reference:

Number	Wavelength[nm]	Beam diameter[mm]	Image shape	Exit angle[mrad]	Image size[μm2]@EFL=100mm
BSH-509	1064	11.3	Round	0.21	21
BSH-511	1064	4.2	Round	13.32	1332
BSH-521	1064	8.5	Round	4.26	426
BSH-522	1064	8.4	Round	1.03	103
BSH-527	1064	1.5	Round	34.9	3490.4
