Beam Splitter

ØFunction:A diffractive beam splitter (or point generator) is a diffractive optical element used to divide a single laser beam into several beams, each having the properties of the original beam (except for its power and propagation Angle).

ØApplication:Laser marking such as solar cells or panels, laser cutting, laser perforation, medical/cosmetic applications such as skin care, 3D sensing and projection.

ØProduct parameter range:

Material	Polymer glass, plastic, fused silica, zinc selenide, sapphire, silicon	DOE integrated size	≤150mm
Wavelength range	193nm ~10.6μm	Coating	Anti-reflective film (optional)
Design	2-8 grayscale	Customized design	Almost arbitrary size
Diffraction efficiency	64% - 98%	Exit angle	≤30°

ØTypical model reference:

Number	Wavelength[nm]	Number of separation points [pieces]	Separation angle[deg]	Exit angle [deg]
BSP-101	1064	321	0.036	11.39
BSP-106	1064	14	1.23	16
BSP-117	1064	2	18.41	18.41
BSP-124	1064	3	0.016	0.032
BSP-163	1064	5	0.3	1.18

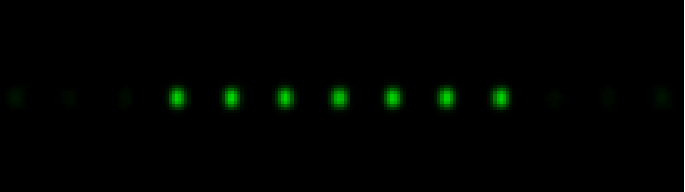

Ø1D beam splitting Typical model reference:

Number	Wavelength[nm]	Number of separation points [pieces]	Separation angle[deg]	Number	Image shape
BSP-204	1064	2×2	13.58×13.58	13.58×13.58	Square
BSP-213	1064	9×9	0.12×0.12	0.96×0.96	Square
BSP-225	1064	37	0.33	1.98	Hexagon
BSP-237	1064	2×3	0.021×0.021	0.021×0.042	Square

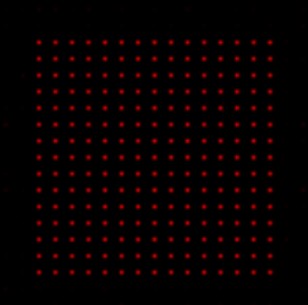

Ø2D beam splitting Typical model reference:

Number	Wavelength[nm]	Number of separation points [pieces]	Separation angle[deg]	Number	Image shape
BSP-204	1064	2×2	13.58×13.58	13.58×13.58	Square
BSP-213	1064	9×9	0.12×0.12	0.96×0.96	Square
BSP-225	1064	37	0.33	1.98	Hexagon
BSP-237	1064	2×3	0.021×0.021	0.021×0.042	Square
