Laser roughening beam splitting
ØFunction: laser ablation→surface diffraction texture, surface modification
ØApplication: product longevity, easy to clean, low friction
ØProduct parameter range:

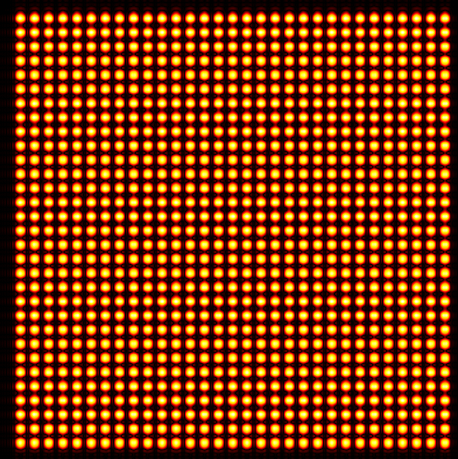

Array mode | Gaussian points, flat vertices, lines | Beam diameter | 6-30mm |
Wavelength range | 193nm ~10.6μm | Material | Polymer glass、, plastic, fused silica, zinc selenide, sapphire, silicon |
Size(Diameter ) | 2×2mm-150mm (square/round) | Coating | Anti-reflective film (optional) |
ØTypical model reference:
Number | Wavelength [nm] | Dots [pieces] | Dot pitch [μm2]@EFL=100mm | Array size[mm]@EFL=100mm | Input beam [mm] |
BSP-505 | 1064 | 51×51 | 20 | 1×1 | 8 |
BSP-521 | 1064 | 25×2501 | 11.4 | 28.6×0.29 | 14.3 |
BSP-525 | 1064 | 125×125 | 13.3 | 1.7×1.7 | 12.3 |
